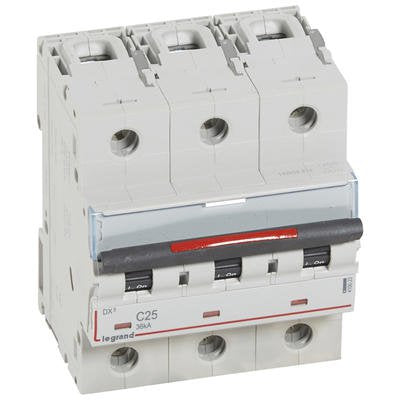

LEGRAND - DX³ 36kA circuit breaker high input and low output with screws 3P 400V~ - 25A - c curve - 4.5 modules - Mfr. ref.: 410023

Legrand DX³ high-performance modular circuit breaker for 400V three-phase installations. 36 kA breaking capacity with 25 A rated current and C curve, suitable for resistive and slightly inductive circuits. Screw-type top input and bottom output configuration for optimal integration in electrical panels. Compact 4.5 DIN module footprint facilitates organization of protections. Proven reliability and compliance with industrial standards for demanding commercial and residential applications. Reference 410023.

Key Specifications

• number of poles (total) - 3
• number of protected poles - 3
• rated current (In) - 25 A
• tripping characteristic (type/curve) - C
• rated breaking capacity according to EN 60898 at 400 V (Icn) - 3 kA

Technical Documents

Product Data Sheet

Manual

Environmental Profile

Declaration of conformity-1

Declaration of conformity-2
