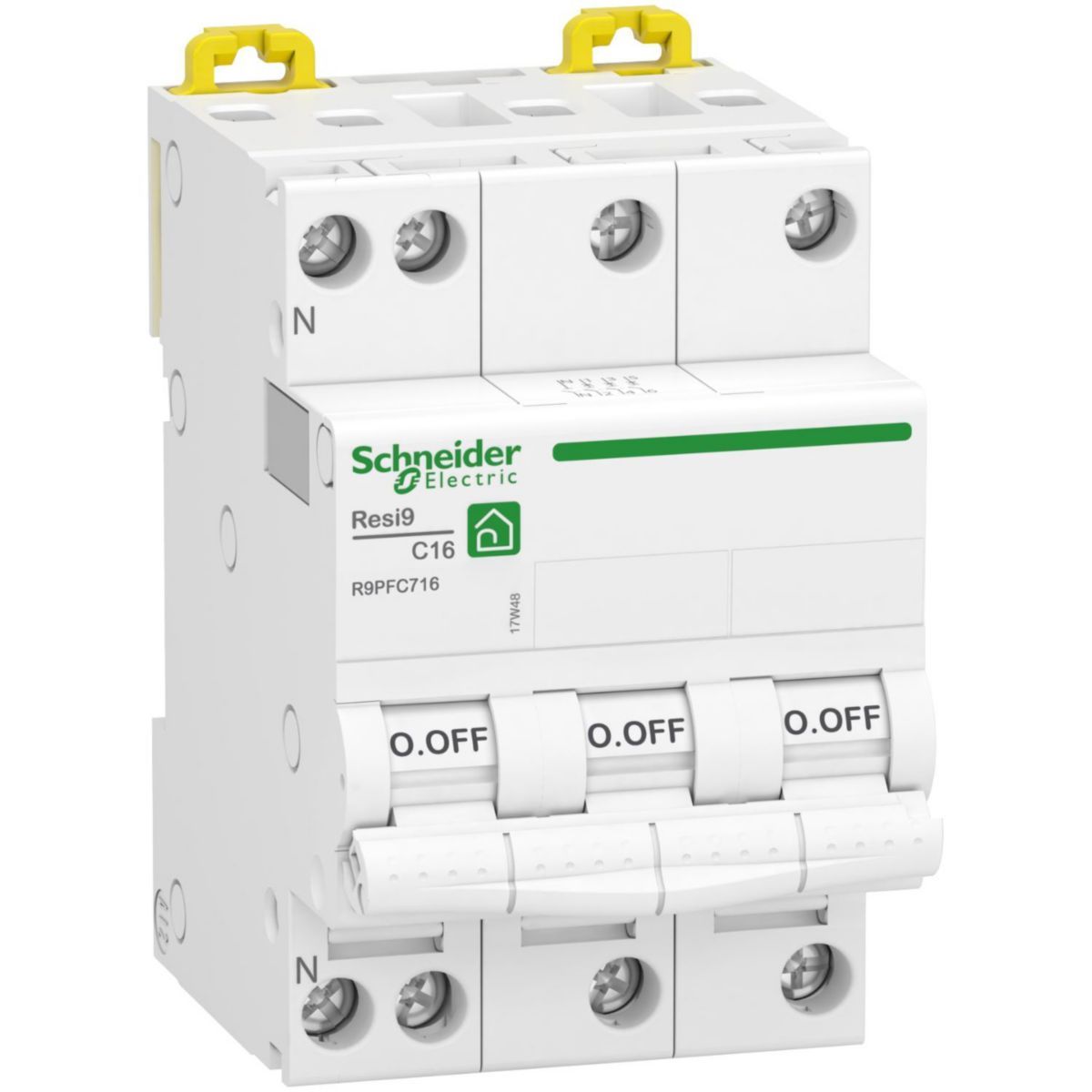

Schneider Electric - Resi9 - modular circuit breaker - 3P+N - 16A - C curve - comb busbar compatible - Mfg. Ref.: R9PFC716

The Schneider Electric Resi9 XP modular circuit breaker is designed for residential and commercial electrical installations. It features a four-pole configuration (3P+N) with a 16A rating and C-curve, providing optimal protection against overloads and short circuits. Breaking capacity is 3kA at 400V. DIN rail mounting with a comb-busbar compatible function for seamless integration into electrical panels. Compliant with current safety standards, this circuit breaker ensures reliability and durability for your critical circuits.

Key specifications

• number of poles (total) - 4
• number of protected poles - 3
• rated current (In) - 16 A
• tripping characteristic (type/curve) - C
• rated breaking capacity according to EN 60898 at 400 V (Icn) - 3 kA

Technical documents

Product sheet

Manual

Environmental profile

Declaration of conformity-1

Declaration of conformity-2
