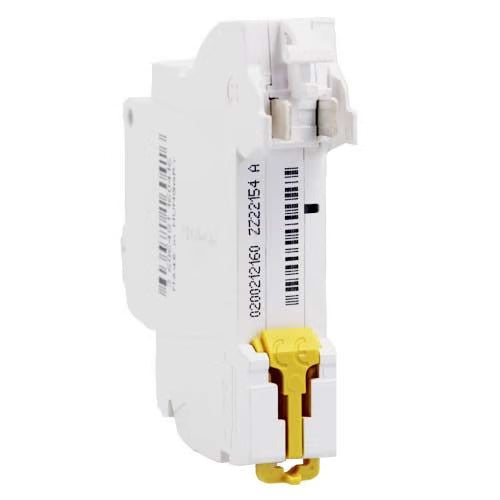

Schneider Electric - Resi9 XE - modular circuit breaker - 1P+N - 32A - C curve - plug-on - Mfg. Ref.: R9EFC632

Schneider Electric Resi9 XE modular circuit breaker designed for residential and tertiary installations. 1P+N configuration with 32A rating and C curve, ideal for protecting lighting and socket circuits. Quick plug-in system for easy installation and maintenance on DIN rail. Compliant with electrical safety standards, this component ensures reliable cutoff in case of overload or short circuit. Manufacturer reference R9EFC632.

Essential specifications

• number of poles (total) - 2
• number of protected poles - 1
• rated current (In) - 32 A
• trip characteristic (type/curve) - C
• neutral pole simultaneously switched - Yes

Technical documents

Product data sheet

Instructions

Environmental profile

Declaration of conformity-1

Declaration of conformity-2
