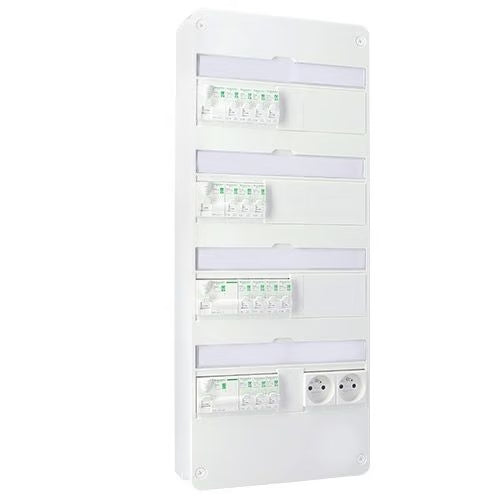

Schneider Electric - Resi9 XE Assembled and wired electrical distribution board, 4 rows, 2 x 40A RCDs, 2 x 63A RCDs, 14 circuit breakers

Schneider Electric - Resi9 XE Assembled and wired electrical distribution board, 4 rows, 2 x 40A RCDs, 2 x 63A RCDs, 14 circuit breakers

Regular price 472,55€ HT
Regular price 556,00€ HT Sale price 472,55€ HT
Unit price 472,55€ HT each
Sale Sold out
→ 567,06 € TTC
Shipping calculated at checkout.
Quantity
Demander un devis

Ref. Manufacturer: SCHNEIDER TAB PRNEQ.

SCHNEIDER Resi9 XE pre-assembled and wired electrical panel, designed for modern residential installations. Complete configuration with 4 rows, 2 x 40A residual current circuit breakers, 2 x 63A residual current circuit breakers, and 14 modular circuit breakers. Ready for installation, this distribution board eliminates on-site assembly time and guarantees compliance with current electrical standards. A reliable solution for the distribution and protection of domestic electrical circuits.

Description

Composition of the pre-equipped electrical panel:

  • 1 empty 4-row Schneider Resi9 electrical panel (Schneider Ref. R9H13404 / 123elec Ref. SCHR9H13404)
  • 2 Schneider 30mA 40A AC-type screw-terminal residual current circuit breakers (Schneider Ref. R9PRC240 / 123elec Ref. SCHR9PRC240)
  • 1 Schneider 30mA 63A AC-type screw-terminal residual current circuit breaker (Schneider Ref. R9PRA263 / 123elec Ref. SCHR9PRA263)
  • 1 Schneider 30mA 63A A-type screw-terminal residual current circuit breaker (Schneider Ref. R9PRC263 / 123elec Ref. SCHR9PRC263)
  • 1 Schneider 2A screw-terminal circuit breaker (Schneider Ref. R9PFC602 / 123elec Ref. SCHR9PFC602)
  • 3 Schneider 10A screw-terminal circuit breakers (Schneider Ref. R9PFC610 / 123elec Ref. SCHR9PFC610)
  • 5 Schneider 16A screw-terminal circuit breakers (Schneider Ref. R9PFC616 / 123elec Ref. SCHR9PFC616)
  • 4 Schneider 20A screw-terminal circuit breakers (Schneider Ref. R9PFC620 / 123elec Ref. SCHR9PFC620)
  • 1 Schneider 32A screw-terminal circuit breaker (Schneider Ref. R9PFC632 / 123elec Ref. SCHR9PFC632)
  • 2 Schneider 2P+E 16A modular sockets (Schneider Ref. R9PCS616 / Ref. SCHR9PCS616)
  • 2 screws for mounting on Schneider Resi9 GTL (Schneider Ref. BG8R9HN9901)
  • 1 Schneider 1P+N 63A 8-module comb busbar (Schneider Ref. R9PXH208)
  • 3 Schneider 1P+N 63A 10-module comb busbars (Schneider Ref. R9PXH210)

Technical specifications of the Schneider electrical board:

  • Number of modules: 52
  • Number of rows: 4
  • Reserve: 48%
  • Height: 625 mm
  • Width: 252 mm
  • Depth: 108 mm
  • Protection rating: IP30 - IK05
  • Color: white
