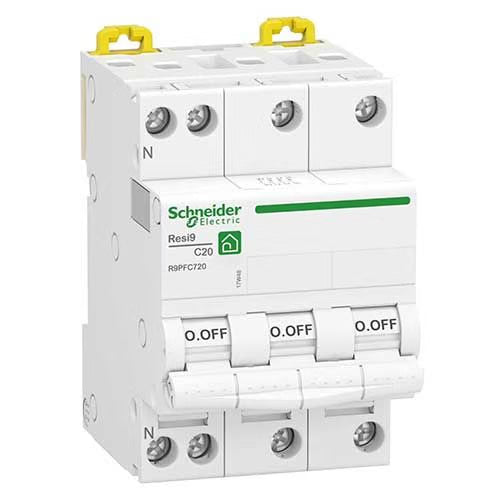

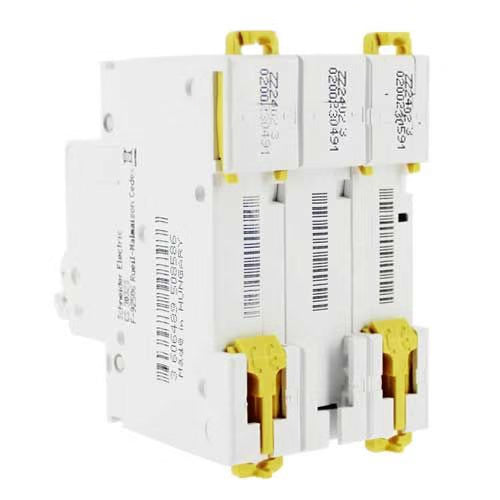

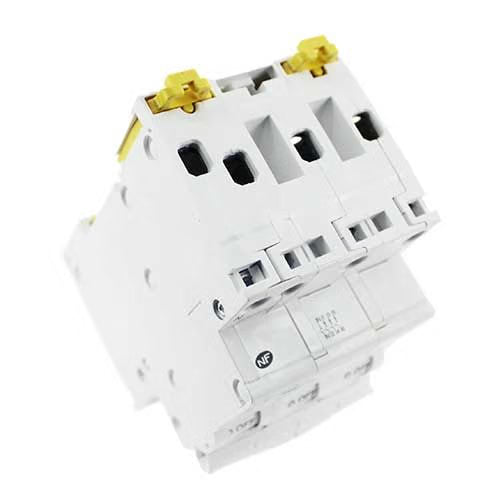

Schneider Electric - Resi9 - modular circuit breaker - 3P+N - 20A - C curve - comb busbar compatible - Mfg. Ref.: R9PFC720

Schneider Electric Resi9 XP four-pole modular circuit breaker designed for residential and tertiary electrical installations. Characterized by a nominal current of 20A and a C curve suitable for standard circuits. Offers a breaking capacity of 3kA at 400V, ensuring reliable protection against overloads and short circuits. Comb-busbar compatible format for optimal integration into electrical panels. Complies with current electrical safety standards. Robust and durable solution for demanding electrical distribution applications.

Key specifications

• number of poles (total) - 4
• number of protected poles - 3
• rated current (In) - 20 A
• tripping characteristic (type/curve) - C
• rated breaking capacity according to EN 60898 at 400 V (Icn) - 3 kA

Technical documents

Product Sheet

Manual

Environmental Profile

Declaration of Conformity-1

Declaration of Conformity-2
