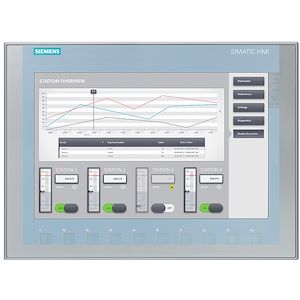

SIEMENS Industry - SIMATIC HMI KTP1200 Basic - Mfg. Ref.: 6AV2123-2MB03-0AX0

SIMATIC HMI KTP1200 Basic Panel – Touch and button operator interface for industrial automation applications. High-resolution 12-inch TFT screen with 65,536 colors for clear process visualization. Integrated PROFINET connectivity for direct communication with Siemens PLCs. Simplified configuration via WinCC Basic V13 or STEP 7 Basic V13 without requiring advanced programming skills. Includes open-source software components. Robust and reliable solution for controlling and monitoring industrial machines and installations.

Key Specifications

• AC supply voltage 50 Hz - 0...0 V
• DC supply voltage - 19.2...28.8 V
• Screen type - TFT
• Number of pixels, horizontal - 1280
• Screen size - 12 inches

Technical Documents

Product Sheet

Technical Diagram

3D Object / BIM
