ABB

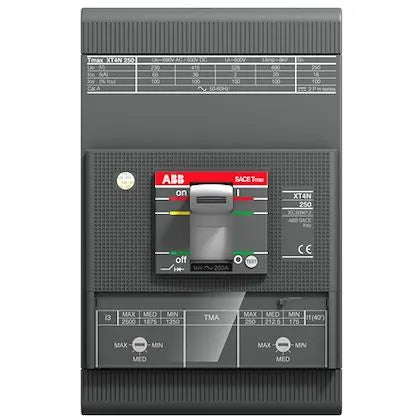

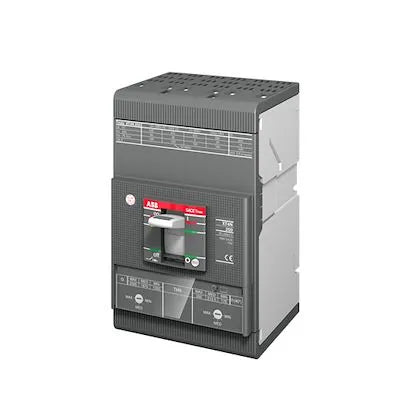

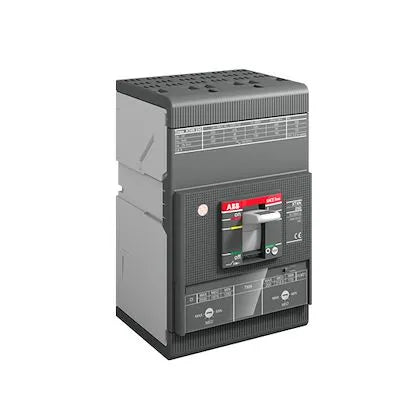

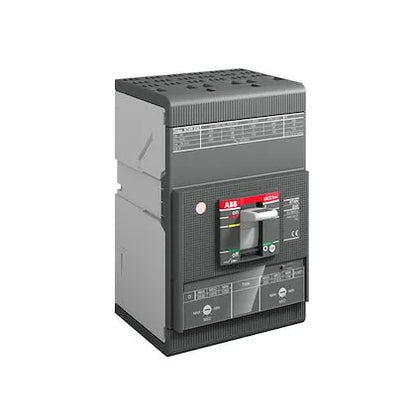

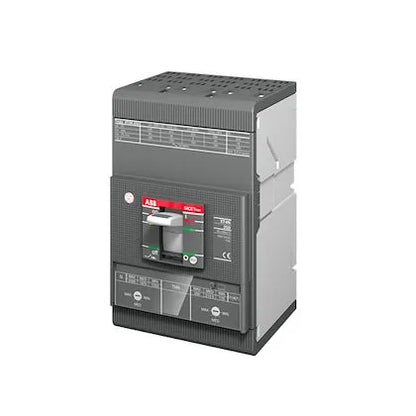

ABB - Circuit Breaker XT4N 3P 225A 36kA + Thermomagnetic Release - Mfg. Ref.: 1SDA068091R1

ABB - Circuit Breaker XT4N 3P 225A 36kA + Thermomagnetic Release - Mfg. Ref.: 1SDA068091R1

Regular price 573,81€ HT
Regular price 1.770,76€ HT Sale price 573,81€ HT
Unit price 573,81€ HT each
Sale Sold out
→ 688,57 € TTC
Shipping calculated at checkout.
Quantity
Demander un devis

ABB XT4N 225A three-phase modular circuit breaker designed for industrial and commercial electrical installations. Rated ultimate short-circuit breaking capacity Icu of 36 kA at 400 V, 50 Hz. Equipped with a TMA R thermomagnetic trip unit for reliable protection against overloads and short circuits. Fixed mounting with front terminals. Manufacturer reference: 1SDA068091R1. Compliant with electrical safety standards. Complete technical documentation available: product data sheets, installation manuals, technical diagrams, and declarations of conformity.

Main features

  • Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA
  • Number of poles 3
  • Rated uninterrupted current Iu 225 A

CIRCUIT BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND TMA R THERMOMAGNETIC TRIP UNIT 225 I3=1125...2250 A

Technical documents

Product data sheet

Manual

Technical diagram 1

Technical diagram 2

Environmental profile

Declaration of conformity-1

Declaration of conformity-2
